Current:Index > Products > Products > Pellet mill
Characteristics:

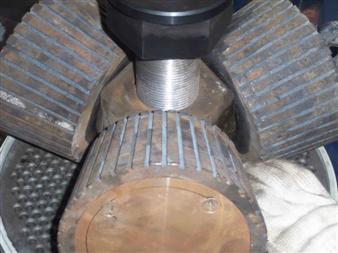

1.It adopts pressing roller and the linear velocity of its ends is the same with the die one, therefore it’s not appearing dislocation and friction, decreasing the resistance, reducing the kinetic energy loss, extending the life of the mold and reducing the production costs.
3.It adopts central screw rod to adjust the pressure, and the distance of mould can be long and short to ensure the effect of pressing, so can suit for different
materials.
4.The models have a wide range of apertureΦ1.5-Φ20mm mold, adapted to different materials, to achieve the best efficiency.

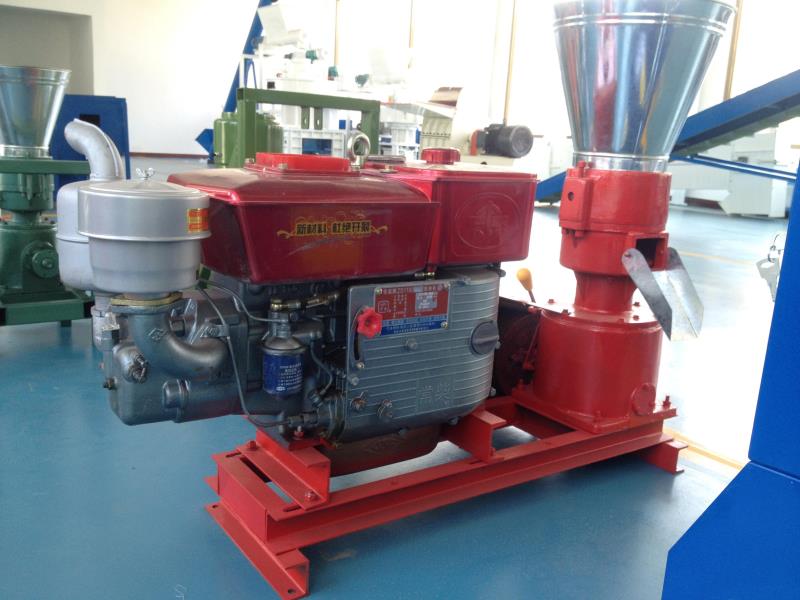

5.It’s adopt to motor or diesel engine driving. Low consumption, high output, easy to operate.
Applicable scope:
6.Sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant waste, low bonding, it is difficult to molding and granulation. It's also applying to low-temperature granulation. Such as bio-fertilizer, organic manure, fertilizer, etc.
Product table:
Model
Output (kgs/h)
Power (kw)
pellet diameter (mm)
Weight (T)
Dimension (mm)
CR-150B
0.09-0.12
4
2-8
0.12
770*340*680
CR-200C
0.2-0.3
7.5
2-8
0.14
1000*450*930
CR-200F
0.1-0.15
7.5-11
2-15
0.2
1150*380*800
CR-250F
0.15-0.25
15-18.5
2-15
0.5
1260*600*800
CR-300F
0.25-0.35
30-37
2-15
0.8
1850*1150*1100
CR-350F
0.3-0.4
37-45
2-15
1.6
1800*850*1500
CR-450F
0.4-0.5
45-55
6-30
2.4
2300*1100*1600
CR-550F
0.5-0.75
55-75
6-30
3.2
2600*1400*1820
CR-800F
2-3
130-160
6-30
7.8
2700*1200*2400
CR-1200F
3-4
280
6-30
17
3700*1900*3000
