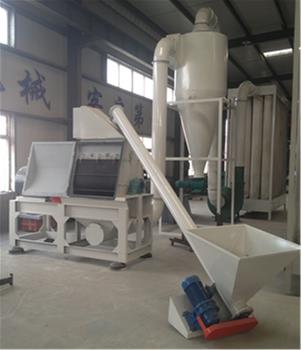

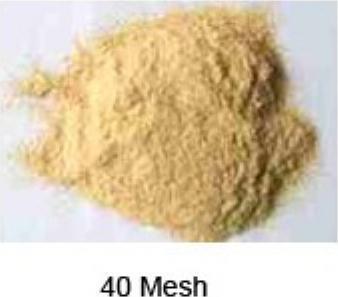

WPC wood powder production line is our new wood powder grinding equipment successfully developed by continuous innovation and test, and can be used for producing the wood powder in the whole wood and plastic project. It mainly includes feeding material, grinding, sieving, and collection; It is suitable for the fineness of final grinding product required to be 40-120 mesh,and the material should be all kinds of wood fiber material with size less than 5 mm(such as sawdust, rice husk, wood shaving and stalks after pre-grinding etc.)
1.Auto-feeding material in certain ration, and one worker can feed and collect material
2.Many models with different capacity and can be modularly assembled to meet different customers' request
3.Final powder size is uniform with good quality, and the machine is running stable and seldom has problem.
4.There is dust collection system, so the working place is no dust.
Product table:
model
Feeding material(MM)
Final product size(Mesh)
Capacity(KG/H)
Total power(KW)
External dimension(MM)
Weight(T)
CR-PE-1
less than 5
>60
300-350
60
5.2*2.2*4.2
3.5
CR-PE-2
less than 5
>60
350-400
80
7.5*2.2*4.8
5.2
CR-PE-3
less than 5
>60
400-450
100
8.6*2.25*4.9
7.5
CR-PE-4
less than 5
>60
450-500
120
12*2.3*4.9
11
CR-PVC-1
less than 5
80-120
150-200
60
5.2*2.2*4.2
3.5
CR-PVC-2
less than 5
80-120
200-250
80
7.5*2.2*4.8
5.2
CR-PVC-3
less than 5
80-120
250-300
100
8.6*2.25*4.9
7.5
CR-PVC-4
less than 5
80-120
300-400
120
12*2.3*4.9
11
