Working Principle

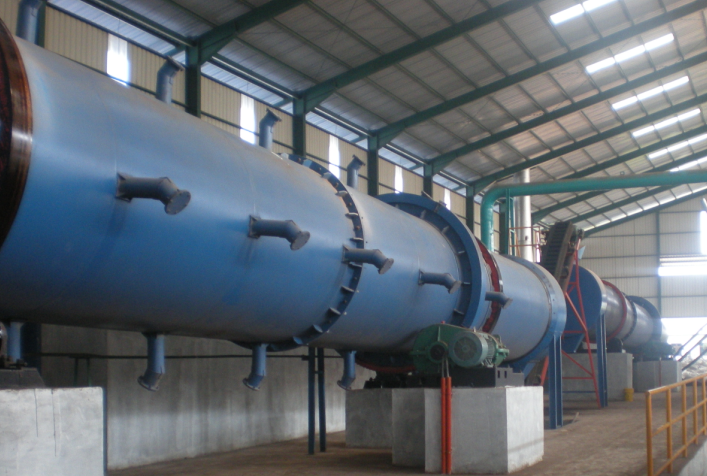

After feeding the material into the dryer, the mix panel device will make the material separate averagely and make full contact with hot air, then move to the outlet through adjustable valve.
Large capacity and full automatic.
Low energy cost and low resistance.
Suitable for wild range of material size.
Sustainable, low cost of operation, the average humidity reduction is good.
The best choice for wood powder drying, especially powder with small wood blocks.
Product Table:
Model
Evaporation of water(KG/H)
Power(KW)
Area(M²)
Thermal efficiency(%)
CR-025
113
11
3.5*3.5
80
CR-0.5
225
18.5
7*5
80
CR-0.9
450
30
7*6.5
80
CR-1.5
675
55
8*7
80
CR-2.0
900
75
11*7
80
CR-2.5
1125
90
12*8
80
CR-3.5
1500
110
14*10
80
